How to Extract a Color Palette from an Image

Choose a suitable source image

The image should represent the mood and environment the palette is meant to support.

Use a photo, illustration, product shot, or screenshot with clear color relationships. Avoid images dominated by filters, mixed lighting, compression artifacts, or a small accidental object that introduces an irrelevant accent.

For brand work, confirm that you have permission to use the image and that the palette is inspired by the visual qualities rather than presented as ownership of someone else’s artwork.

Separate dominant and accent colors

Dominant colors describe the image’s overall field, while accents create emphasis and hierarchy.

A landscape may be mostly muted sky and earth tones with a small vivid flower. The flower can be valuable as an action color even though it occupies few pixels. Automatic frequency alone cannot understand that role.

Sample both broad areas and intentional focal points, then label why each selection matters.

Sample meaningful regions

Pixel-level picking is most useful when the selected point represents a stable region rather than glare, shadow, or compression noise.

Zoom in and compare nearby pixels. If values vary heavily, sample multiple points or choose a median-looking value. Reflections and edge anti-aliasing often produce colors that do not represent the actual material.

Color Pick processes the image locally in the browser. The image does not need to be uploaded to a Color Pick account or server.

Reduce duplicates and add neutrals

Extracted palettes often contain several colors that are visually too similar to deserve separate roles.

Keep the version that best represents the source or offers the most practical contrast. Merge near-duplicates, then add a deliberate text neutral and background neutral if the image does not provide suitable values.

Use CIEDE2000 distance as supporting evidence for similarity, but make the final decision in context because small differences can matter for brand identity and larger differences can still collapse under color-vision simulation.

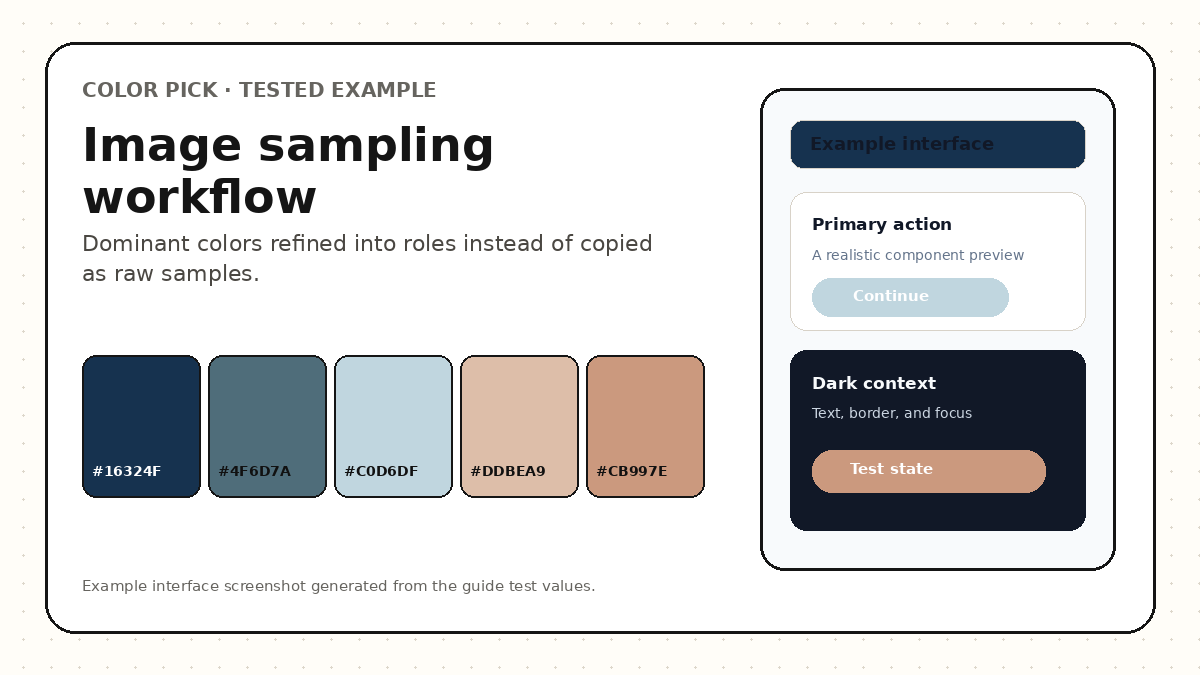

Step-by-step image palette workflow

Turn image sampling into a repeatable design process.

1. 1

   Choose an image with representative lighting and color character.

2. 2

   Open the image in the Image Color Picker.

3. 3

   Review automatically extracted colors, then sample important regions manually.

4. 4

   Keep one or two dominant colors and one or two meaningful accents.

5. 5

   Remove near-duplicates and add practical neutrals.

6. 6

   Open the palette in the Playground and map semantic roles.

7. 7

   Run contrast, color-vision, light-mode, and dark-mode checks.

8. 8

   Export only the refined role-based palette.

Worked example: coastal product image

A coastal image might produce navy, turquoise, sand, coral, and white.

Navy can become primary text or a dark surface, turquoise can support brand or information accents, sand can become a warm background, coral can be reserved for emphasis, and white can become an elevated surface. The exact values should be adjusted for contrast rather than copied blindly from pixels.

If coral and turquoise are both used for status meaning, test their separation under protanopia, deuteranopia, tritanopia, and grayscale. Add icons or labels so meaning does not depend on color alone.

Image extraction limitations

An image records a specific capture and editing pipeline, not an objective material color.

• Camera white balance changes color relationships.
• Screen captures may use a different color profile.
• JPEG compression introduces local artifacts.
• Shadows and highlights distort surface color.
• Automatic dominant colors can ignore small but important accents.
• Extracted colors still require accessibility and product-context testing.

Key takeaways

Extracting a palette is a process of interpretation and refinement.

• Choose a representative image.
• Sample meaningful regions, not random pixels.
• Separate dominant and accent colors.
• Remove near-duplicates.
• Add role-ready neutrals.
• Test the refined palette in real components.
• Keep image processing local and private.

Frequently asked questions

Primary references

These sources support the standards and technical explanations in this guide. Color Pick recommendations and product-specific limitations are identified separately in the article.

1. <color> CSS data typeMDN Web Docs
2. Understanding Success Criterion 1.4.1: Use of ColorW3C Web Accessibility Initiative
3. Colorimetry — Part 6: CIEDE2000 Colour-Difference FormulaInternational Commission on Illumination
